TOP Tech Innovation Industries
TOP TECH INNOVATION INDUSTRIES • BHOPAL

Industrial Fabrication & CNC Engineering Services

High-precision sheet metal forming, heavy structural steel fabrication, and custom process equipment engineered at our Govindpura plant in Bhopal. 20kW/6kW lasers, 170-Ton press brakes, and certified ISO 9001:2015 standards.

Explore 12 Services +91 85179 88927
01 / 12 Precision Cutting & Profiling
6kW / 20kW High Power

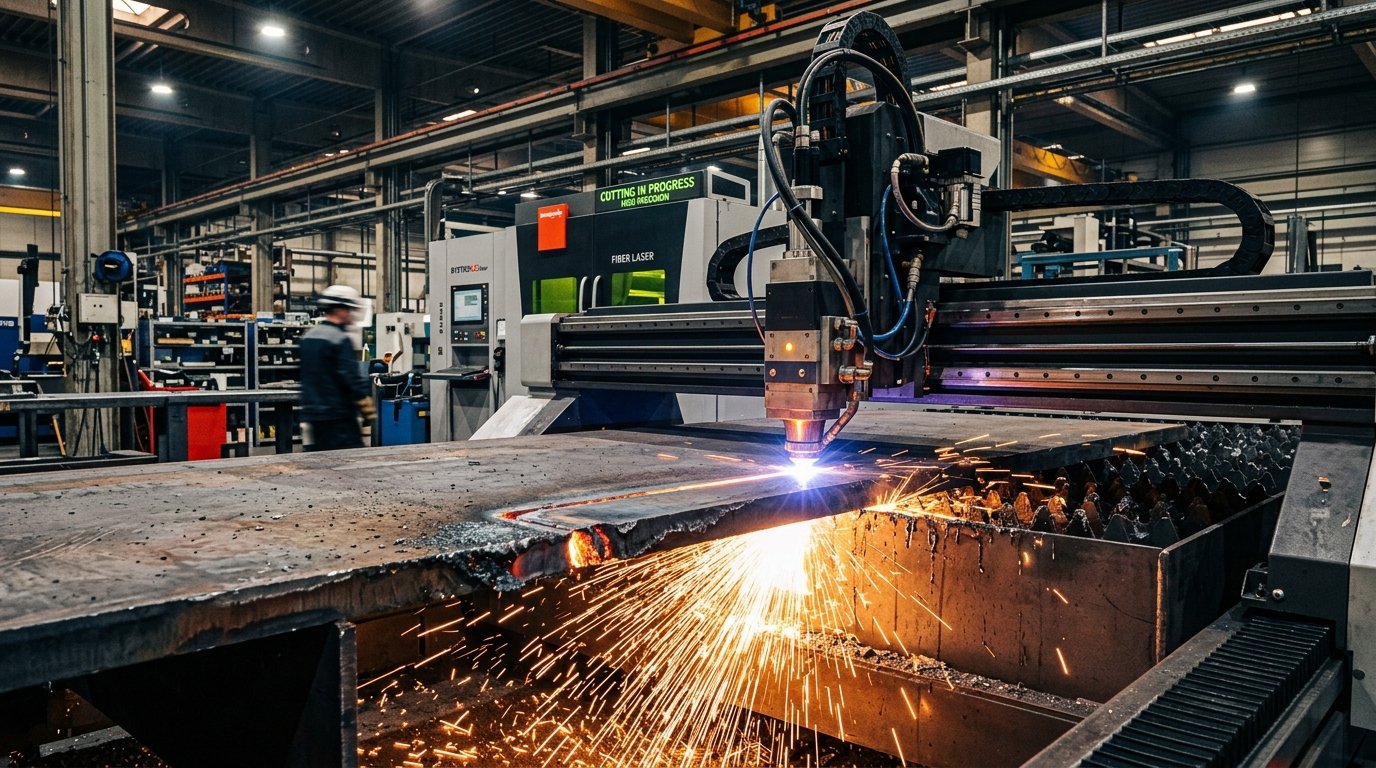

Industrial CNC fiber laser cutting machine in Bhopal plant
6kW / 20kW High Power
TOL: ±0.03 mm

CNC Fiber Laser Cutting

Ultra-precise fiber laser cutting for mild steel, stainless steel, aluminum, brass, and copper plates up to 30mm with dual shuttle tables.

Intelligent high-speed piercing with auto focal positioning
Burr-free edge finish eliminating secondary edge grinding
Zero thermal distortion on intricate contours and tight radiuses
Envelope: 2500 x 6500 mm Dual Table
Tolerance: ±0.03 mm
Quote via WhatsApp Specs
Work Samples:
Click to inspect
Precision laser-cut sheet metal components

Precision Sheet Components

High-precision nested components with ±0.03mm tolerance

Laser-cut industrial plate blanks

Heavy Plate Industrial Blanks

Clean edge cutting for thick mild steel structural plates

02 / 12 Sheet Metal Forming
170-Ton Press Brake
170-Ton CNC hydraulic press brake bending machine
170-Ton Press Brake
TOL: ±0.2° Angle Accuracy

CNC Bending & Hydraulic Press Brake

Multi-axis CNC hydraulic press brake bending with 170 Tons force and dynamic crowning compensation for precise, repeatable folded profiles.

Multi-Axis CNC backgauge for progressive multi-step bending
Dynamic hydraulic crowning compensation for uniform angles
Scratch-free tooling options for mirror and hairline stainless steel
Envelope: 3200 mm Bed Length
Tolerance: ±0.2° Angle Accuracy
Quote via WhatsApp Specs
Work Samples:
Click to inspect
Operator forming sheet metal on CNC press brake

Multi-Axis Progressive Bends

High-precision stepped bends on industrial machine panels

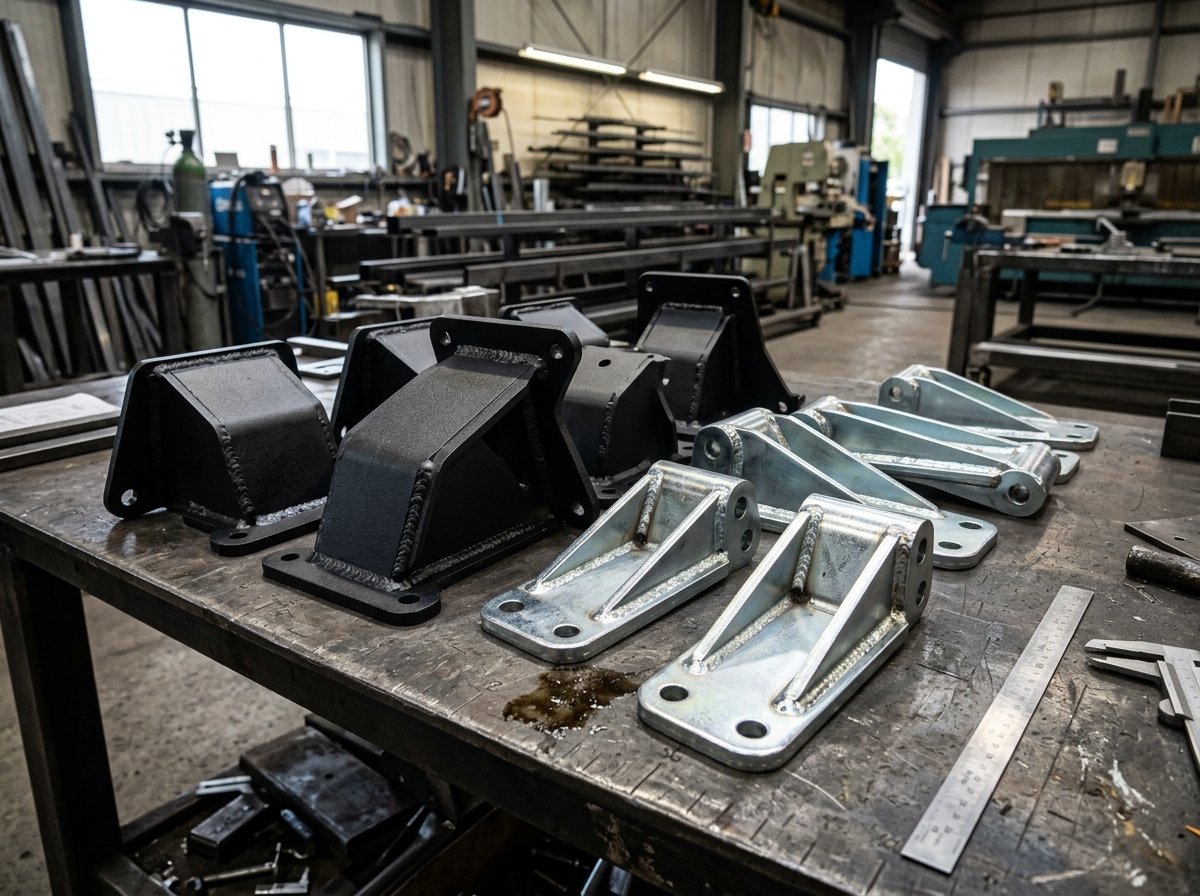

Folded high-tensile steel brackets and formed channels

Formed Mounting Brackets

Consistent angle formation with zero micro-fractures

03 / 12 3D Rotary Machining
3D Rotary Chuck

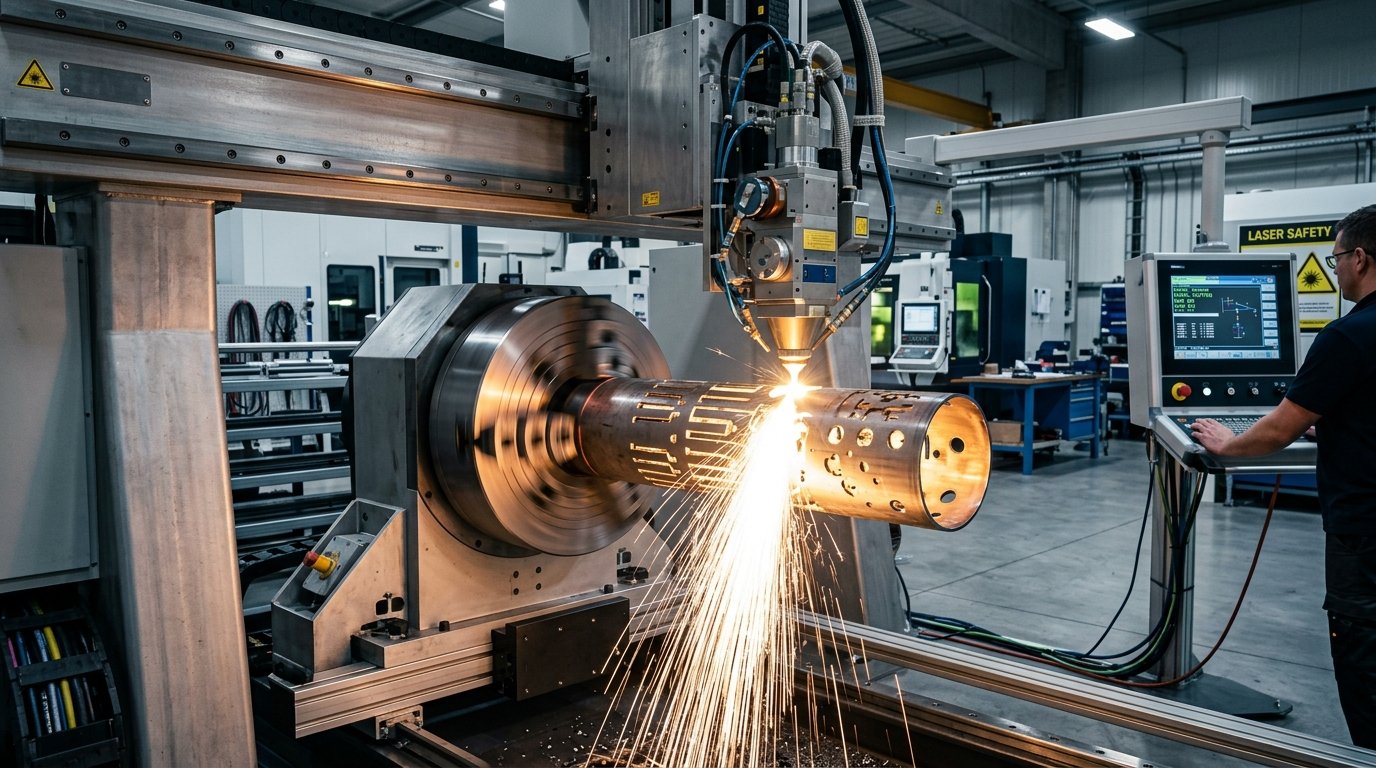

CNC rotary laser tube cutting circular steel pipe with bright sparks
3D Rotary Chuck
TOL: ±0.05 mm

CNC Laser Tube & Pipe Cutting

3D rotary chuck fiber laser tube processing for circular pipes, square tubes, rectangular hollow sections, and custom structural profiles.

Bevel and 45° miter cuts for seamless push-to-assemble tubular joints
Pneumatic rotary chuck with auto steady-rests preventing tube sagging
Slot-and-tab self-locating joints that slash welding jig times by 60%
Envelope: Dia 15-254 mm, Length 6500 mm
Tolerance: ±0.05 mm
Quote via WhatsApp Specs
Work Samples:
Click to inspect

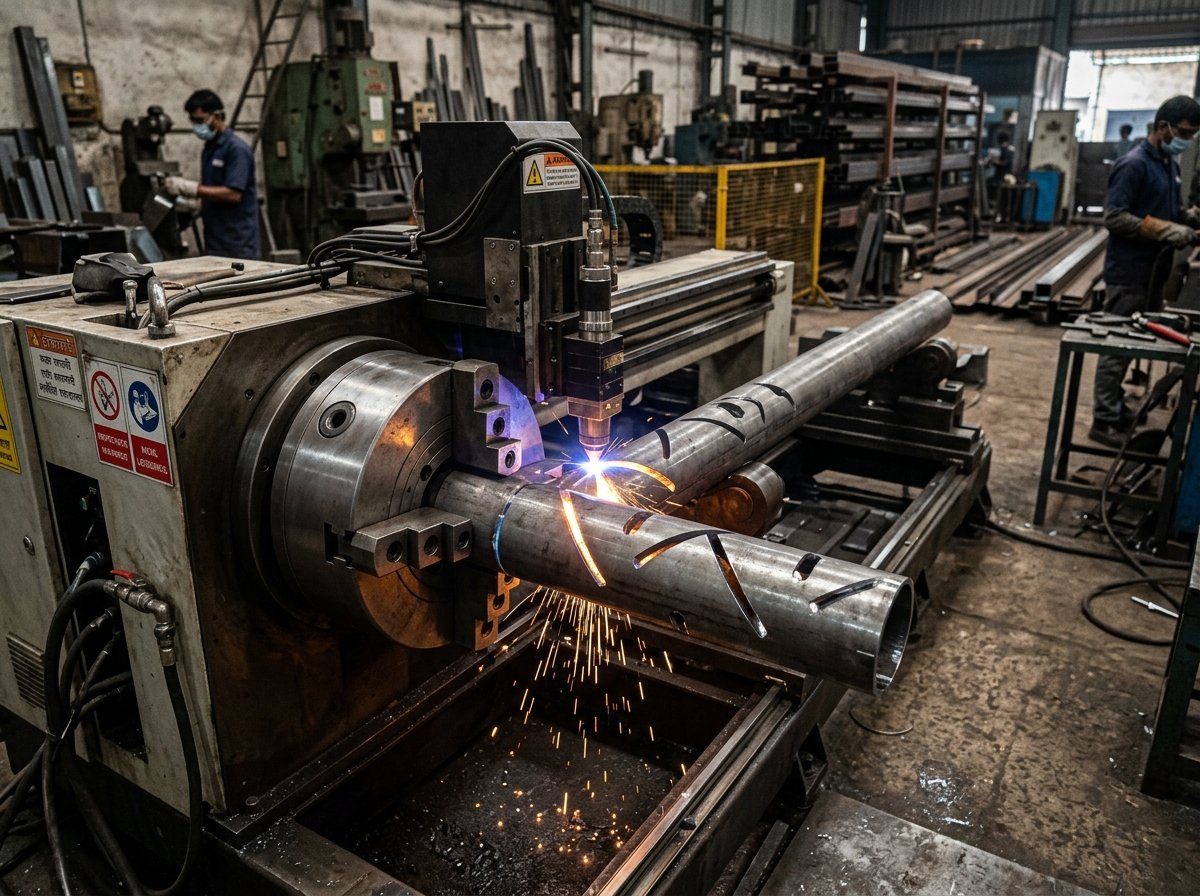

Rotary chuck laser cutting machine with bright sparks

Rotary Chuck Pipe Cutting

Continuous rotary tube laser chuck with automated clamping

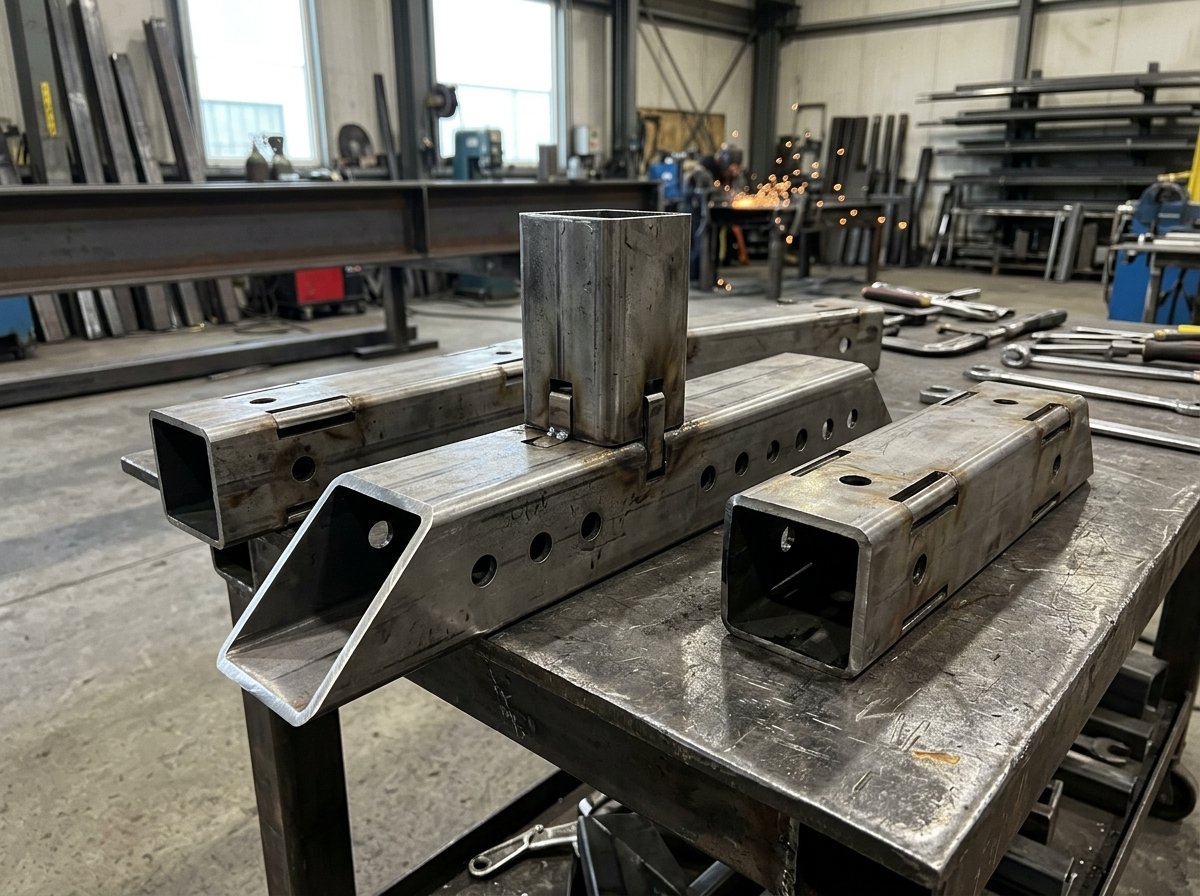

Square metal tube with laser-cut interlocking slots

Square Tube Interlocking Joints

Self-locating tab-and-slot joint profiles ready for rapid assembly

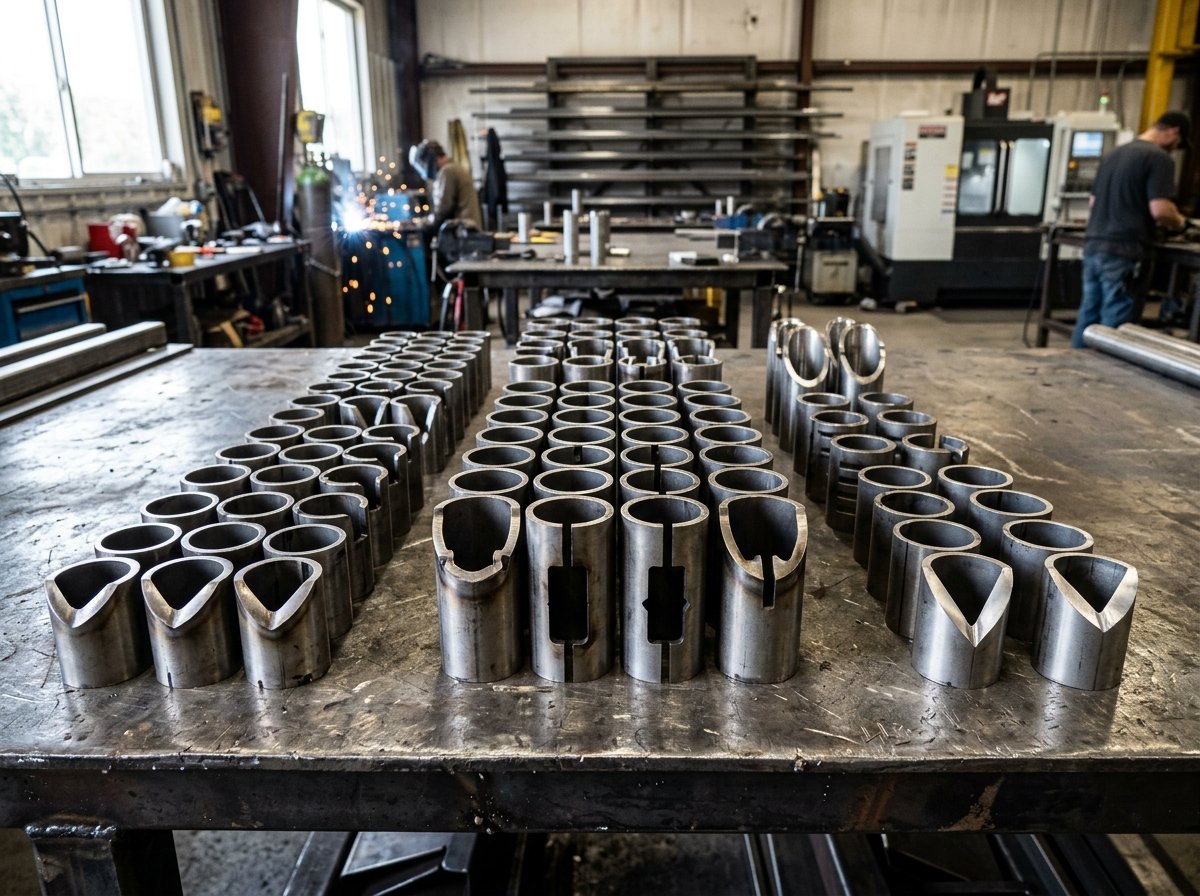

Precision coped fish-mouth cut pipe ends

Coped Pipe Ends & Contour Cuts

Complex miter cuts and radial coped ends for structural frames

04 / 12 Advanced Laser Joining
3 kW 5-in-1 Water Cooled

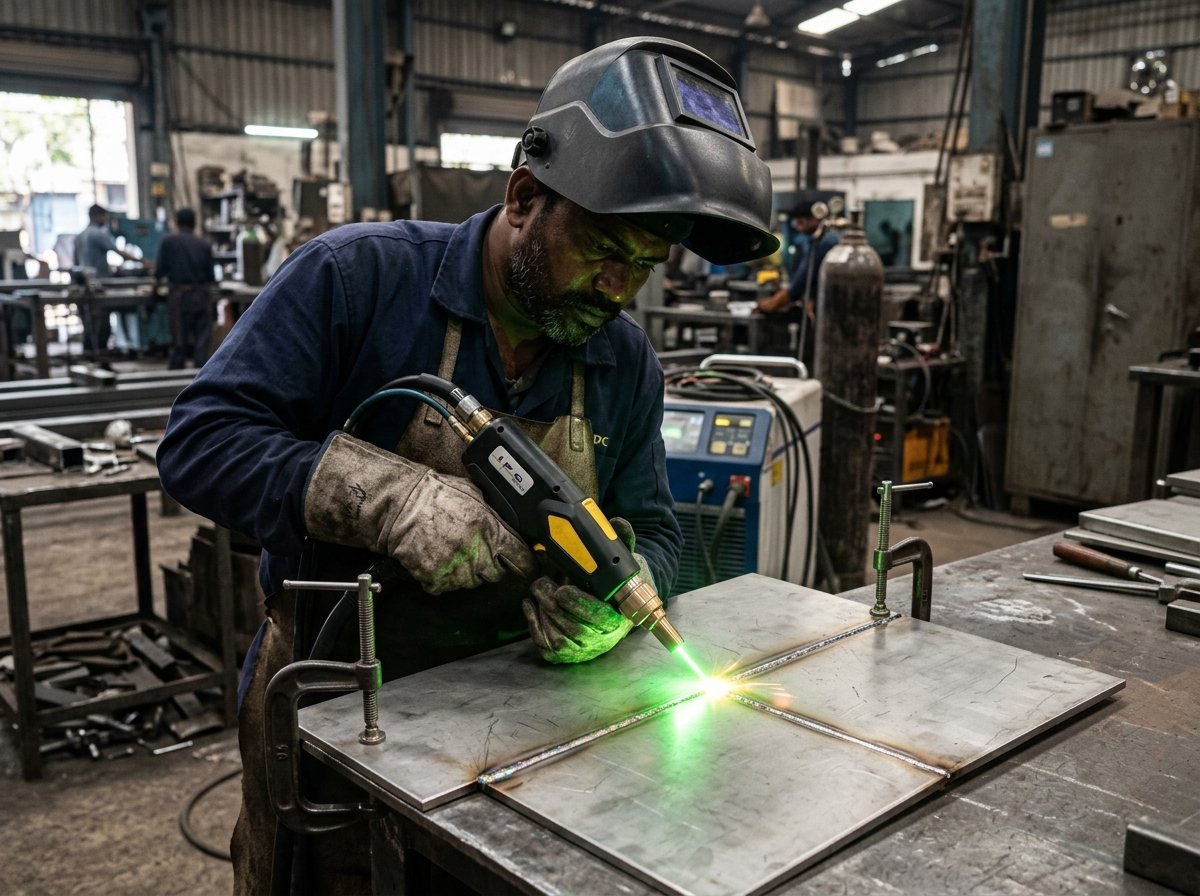

Handheld 3kW fiber laser welding torch operating in workshop
3 kW 5-in-1 Water Cooled
TOL: Sub-Millimeter Seam

Laser Welding (3 kW 5-in-1 Handheld System)

Next-generation 3 kW handheld fiber laser welding system delivering deep penetration welds, minimal heat distortion, seam cleaning, and oxide removal.

5x to 10x faster travel speeds compared to manual TIG/MIG welding
Minimal Heat Affected Zone (HAZ) preventing plate warping and burn-through
5-in-1 versatile modes: High-Power Welding, Seam Cleaning, and Rust Removal
Envelope: Continuous Handheld Torch & Wire Feeder
Tolerance: Sub-Millimeter Seam
Quote via WhatsApp Specs
Work Samples:
Click to inspect

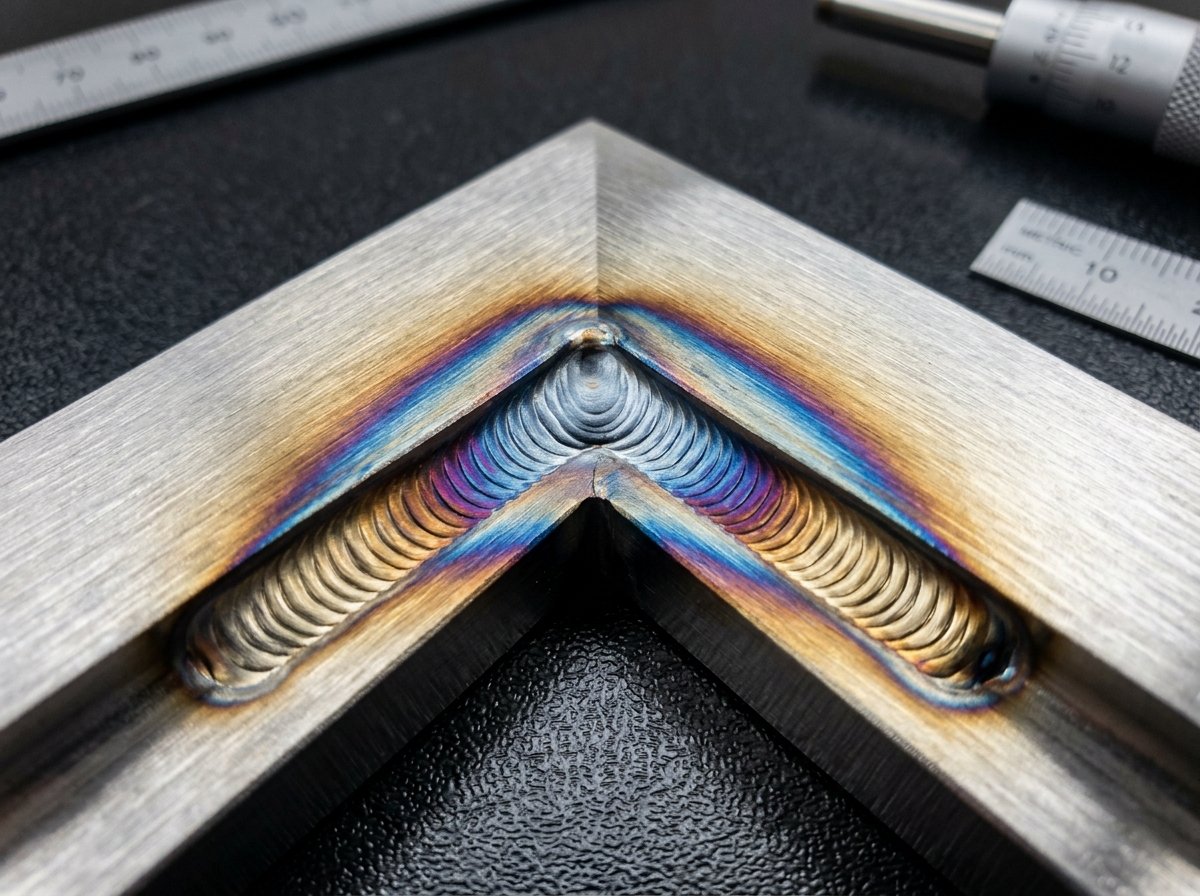

Laser weld seam on stainless steel corner

Flawless SS Corner Seam

Cosmetic-grade weld bead requiring zero post-weld grinding

Fiber laser beam stripping rust and oxide layer

5-in-1 Laser Surface Cleaning

High-speed laser cleaning of rust and mill scale before joining

05 / 12 Precision Component Marking
60 Watt Raycus Marker

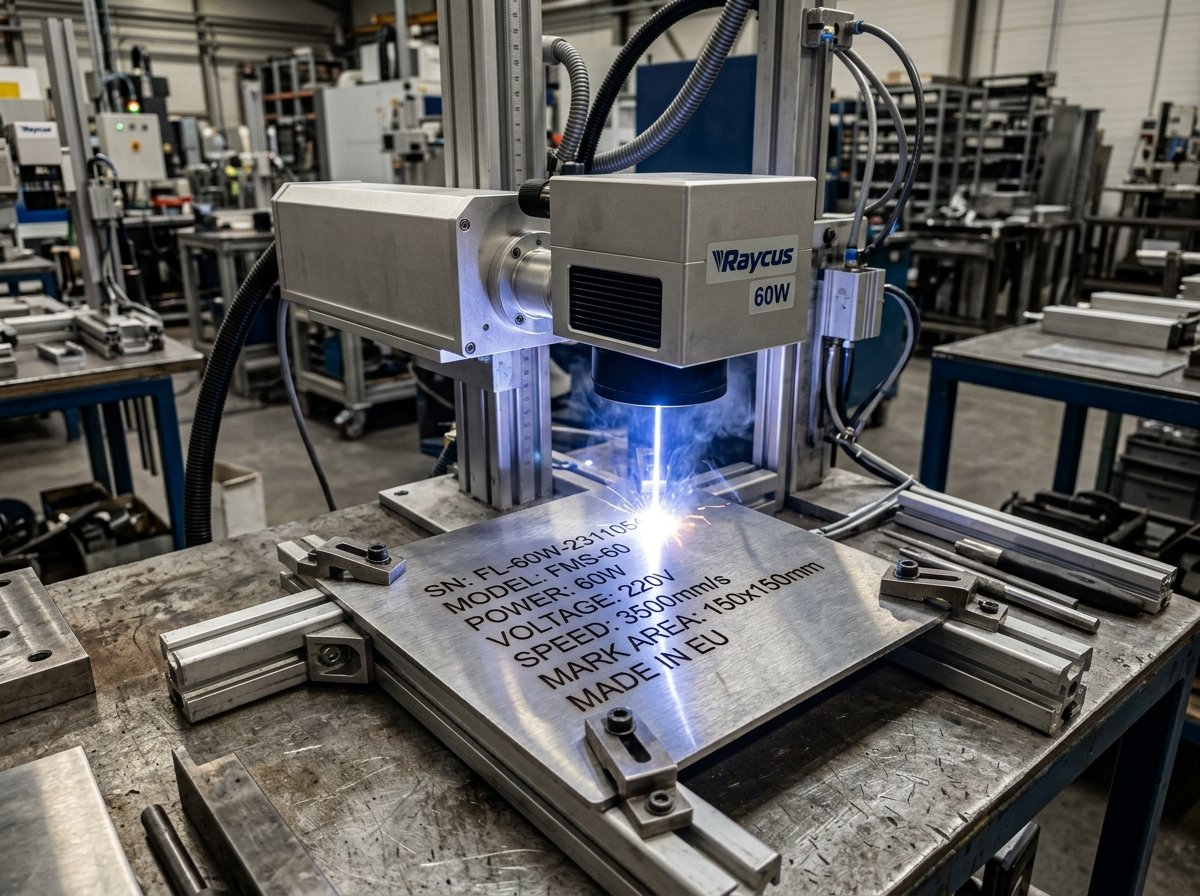

60W fiber laser marking machine engraving metal rating plate
60 Watt Raycus Marker
TOL: ±0.001 mm Positioning

Fiber Laser Marking & Engraving (60W)

Permanent high-contrast industrial laser marking, serial number identification, barcode/QR engraving, and technical asset branding across all metals.

60W Raycus solid-state fiber laser with 100,000+ hours lifespan
High-speed digital galvanometer scanning head marking up to 9,000 mm/sec
Automated alphanumeric serialization and 2D DataMatrix / QR encoding
Envelope: 300 x 300 mm & Rotary Chuck
Tolerance: ±0.001 mm Positioning
Quote via WhatsApp Specs
Work Samples:
Click to inspect

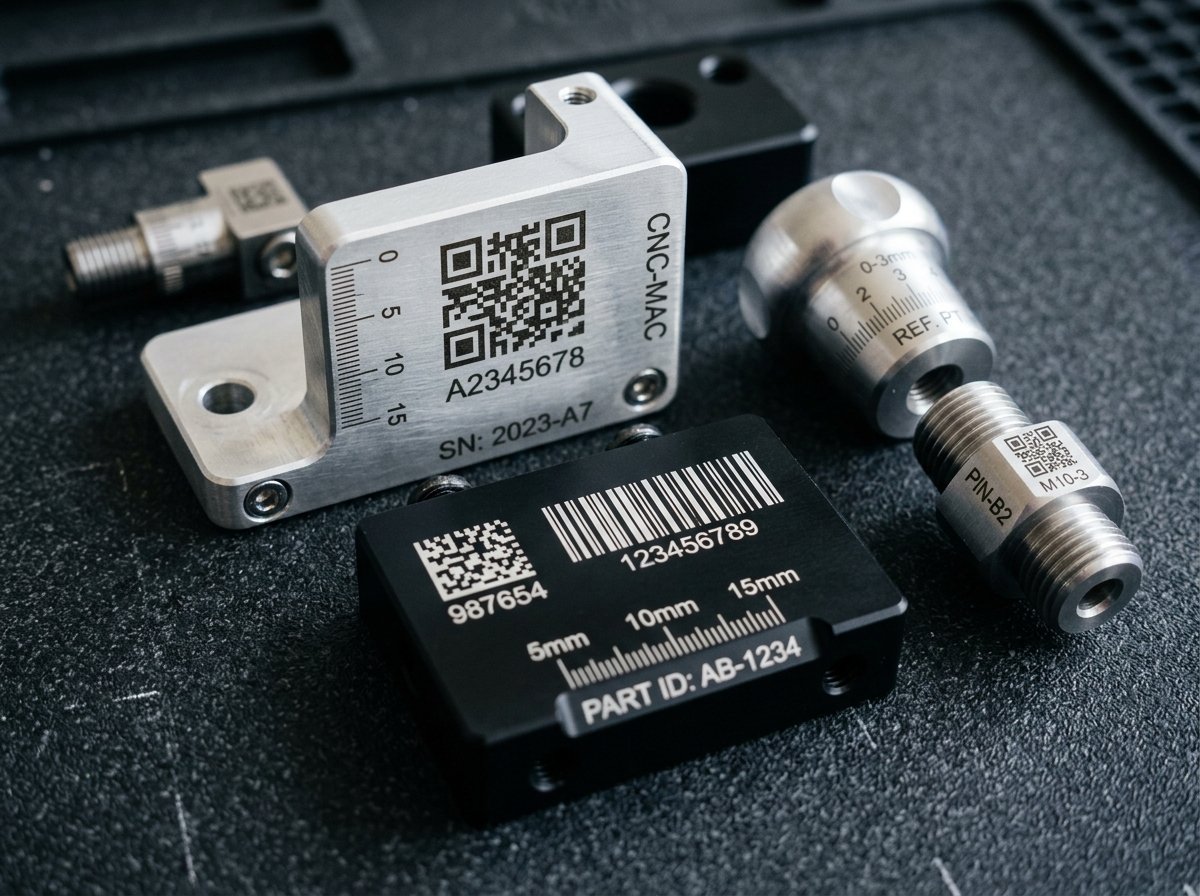

Laser marked QR code and serial number on metal tag

2D DataMatrix & QR Marking

Permanent machine-readable barcodes compliant with ISO traceability

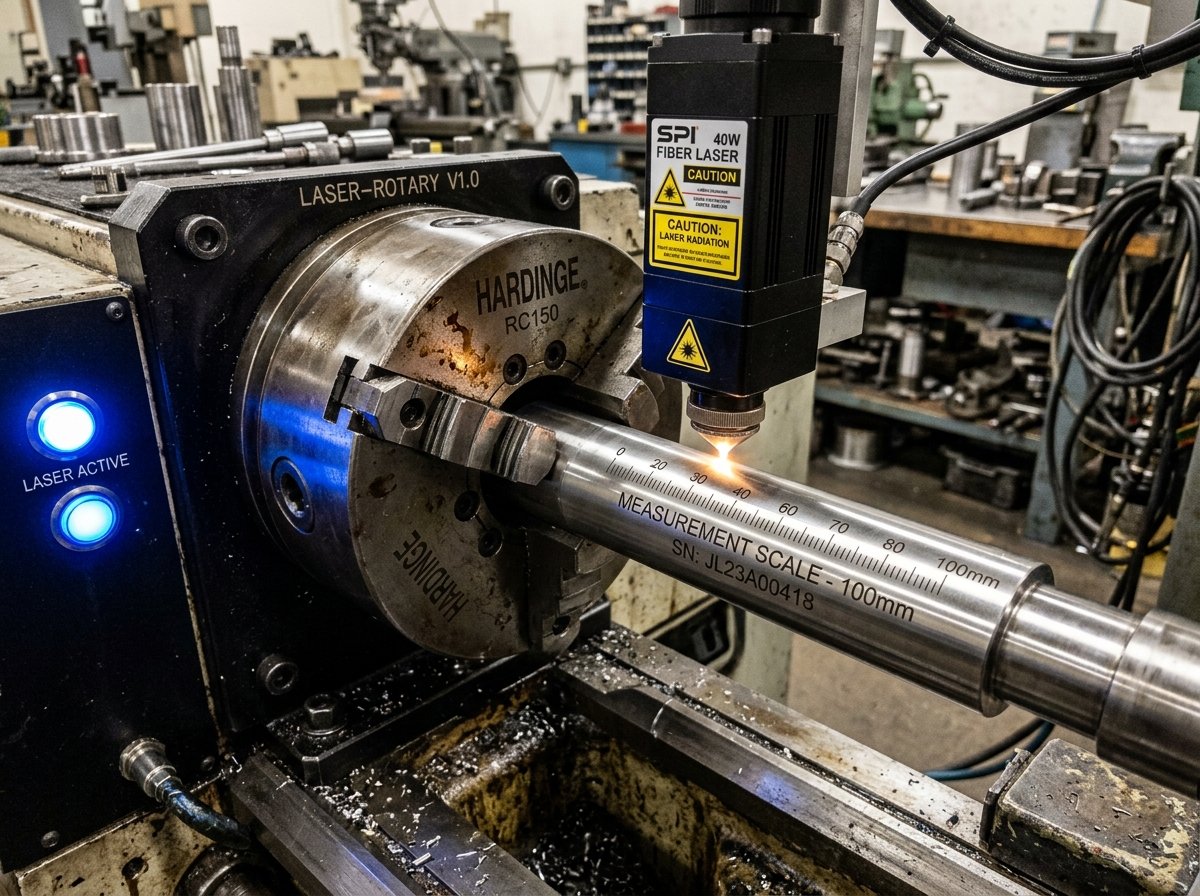

Fiber laser marking measurement scale on cylindrical shaft

Rotary Radial Shaft Engraving

360-degree radial indexing for round tools and automotive shafts

06 / 12 Automotive Fabrication
OEM Standard Precision

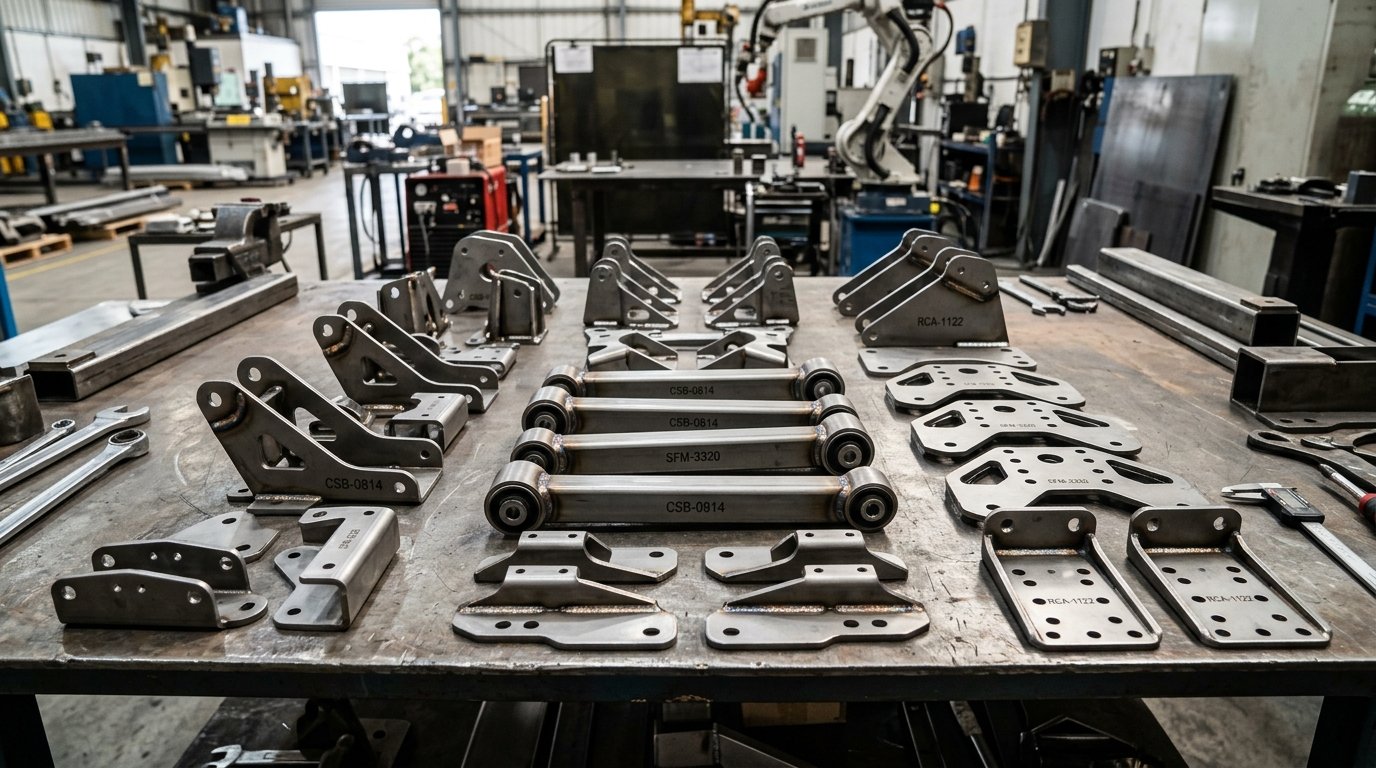

Welded automotive chassis crossmembers and tubular frames
OEM Standard Precision
TOL: ±0.08 mm Repeatability

Automobile & Chassis Parts

High-precision stamped, laser-cut, and robotically welded chassis brackets, crossmembers, engine mounts, and commercial vehicle assemblies.

High-tonnage hydraulic stamping and CNC punching for batch production
Dedicated pneumatic clamping fixtures guaranteeing identical tolerances
Anti-corrosion finishing including zinc phosphating, galvanizing, or CED coating
Envelope: Dedicated Fixture Benches
Tolerance: ±0.08 mm Repeatability
Quote via WhatsApp Specs
Work Samples:
Click to inspect
Heavy-duty laser-cut and formed automotive engine mounting brackets

Engine Mounting Brackets

Folded high-tensile steel mounting plates with precision hole patterns

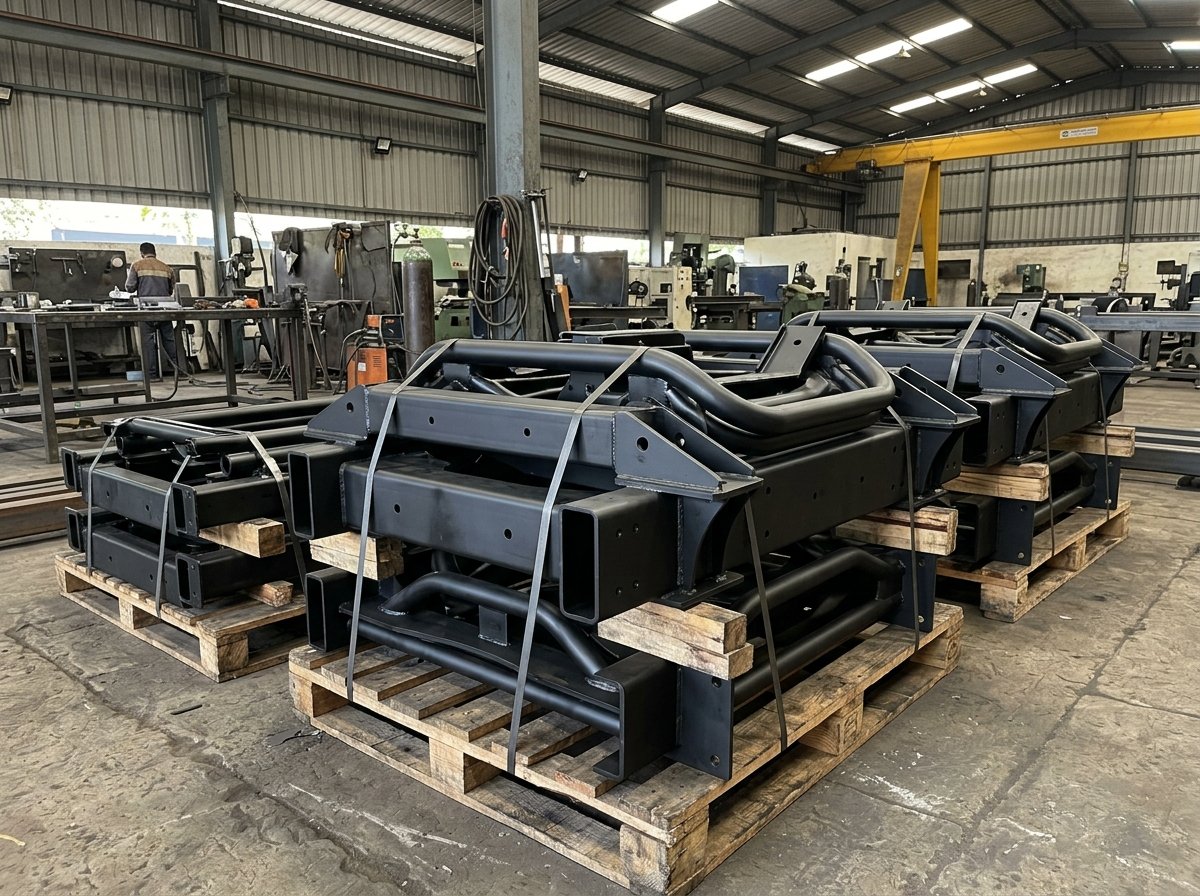

Commercial truck chassis crossmember assembly

Welded Chassis Crossmembers

Heavy tubular crossmember with reinforced welded end-flanges

07 / 12 Acoustic Engineering
Attenuation up to -35dB

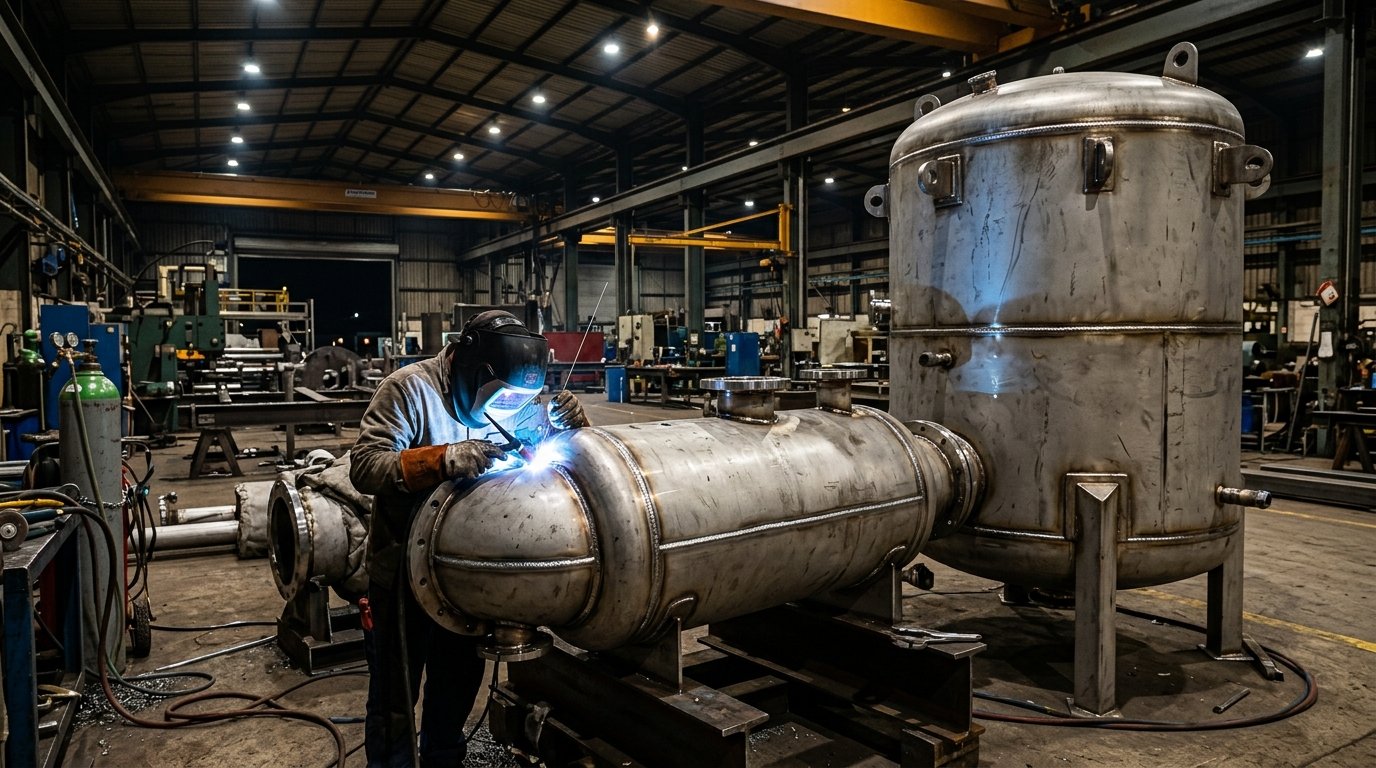

Industrial genset silencer exhaust muffler tanks in factory yard
Attenuation up to -35dB
TOL: Low Back-Pressure Certified

Genset Silencers & Exhausts

Heavy-duty residential, hospital, and critical-grade industrial generator silencers, stainless steel exhaust manifolds, and thermal expansion ducting systems.

Multi-chamber reactive and absorptive acoustic baffles for maximum noise reduction
Hydro-tested shell construction ensuring zero toxic exhaust gas leakage
Stainless steel thermal expansion bellows absorbing vibration and heat shock
Envelope: From 25 kVA up to 3500 kVA
Tolerance: Low Back-Pressure Certified
Quote via WhatsApp Specs
Work Samples:
Click to inspect
Heavy cylindrical genset exhaust silencer with flanged nozzles

Multi-Chamber Silencer Shells

Dual-inlet residential grade silencer with internal acoustic baffles

Fabricated steel exhaust ducting and collector manifold

Flanged Exhaust Ducts

Precision rolled duct segments with laser-cut companion rings

08 / 12 Power Equipment Fabrication
Heavy Power Fabrications

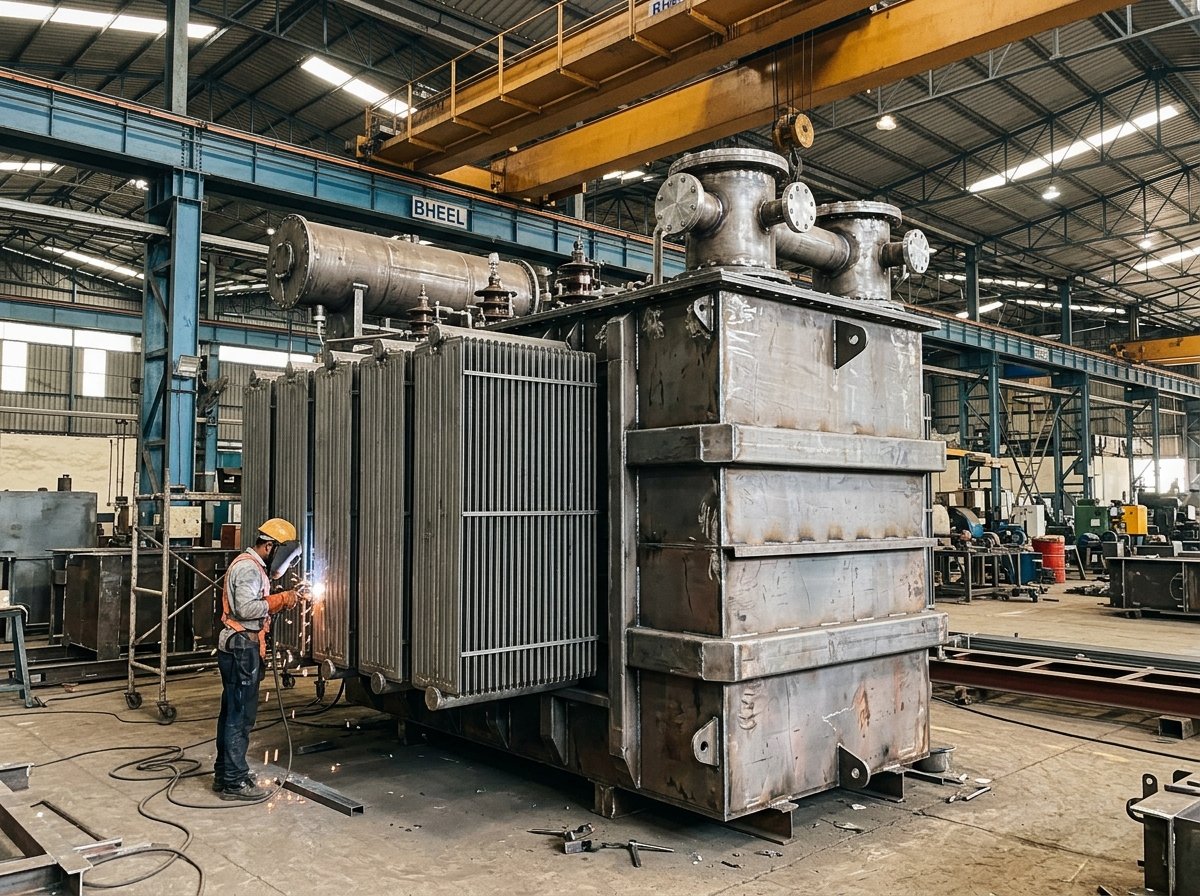

Power transformer tank fabrication workshop in Govindpura Bhopal
Heavy Power Fabrications
TOL: Zero-Leakage Seam

Transformers & Power Components

Precision fabrication of power transformer tanks, corrugated radiator fin walls, core clamping channels, and high-conductivity copper busbar assemblies in Bhopal.

Heavy plate shell rolling, submerged arc seam welding, and pressure leak testing
Precision CNC punched core clamping frames and yoke tie rods with insulation
High-conductivity pure copper busbar profiling, hole-punching, and plating
Envelope: Distribution & Power Tanks
Tolerance: Zero-Leakage Seam
Quote via WhatsApp Specs
Work Samples:
Click to inspect
Folded corrugated radiator fin walls for transformer cooling

Corrugated Radiator Fin Walls

Precision folded CRCA fin panels for efficient transformer heat dissipation

Heavy structural channels and core clamping frames in factory bay

Core Clamping Frames & Tanks

Fabricated structural steel channels and yoke clamping frames

09 / 12 Safe & Efficient Power Management
LT / HT / IP65 Enclosures
Modular powder-coated gray industrial electrical switchgear enclosures
LT / HT / IP65 Enclosures
TOL: IP54 / IP55 / IP65 Protection

Electrical Control Panels & Enclosures

Our Electrical Panels are designed for safe distribution and control of electricity in residential, commercial, and industrial applications. Certified builds with compact design and high safety standards.

Compact modular design ensuring optimal spatial footprint and easy cable access
High safety standards compliant with international electrical codes and overload defense
8-tank chemical pre-treatment followed by 80+ micron electrostatic RAL 7035 coating
Envelope: Floor-Standing & Wall Enclosures
Tolerance: IP54 / IP55 / IP65 Protection
Quote via WhatsApp Specs
Work Samples:
Click to inspect
Internal switchgear wiring and busbars inside electrical panel

Internal Switchgear & Wiring

Modular LT motor control panel with neat wiring and circuit protection

Electrolytic copper busbar distribution links

Copper Busbar Distribution Links

Customized multi-feeder layout with high-conductivity copper busbars

10 / 12 Heavy Industrial Structures
IS 800 Structural Grade
Pre-Engineered Building steel structure and warehouse shed under construction
IS 800 Structural Grade
TOL: AWS D1.1 Certified Welding

Steel Structures, Industrial Sheds & PEB

Design, fabrication, and erection of Pre-Engineered Buildings (PEB), warehouse sheds, heavy crane gantry runway girders, and industrial factory structures.

Complete CAD/CAM structural modeling, load simulations, and wind stress calculations
Automated submerged arc welding (SAW) for deep penetration flange-to-web joints
Shot blasting to SA 2.5 standard followed by epoxy primer and polyurethane coating
Envelope: Capacity up to 500 Tons/Month
Tolerance: AWS D1.1 Certified Welding
Quote via WhatsApp Specs
Work Samples:
Click to inspect
Heavy crane gantry beams and structural factory bays

Heavy Crane Runway Girders

Fabricated built-up box girders designed for heavy EOT crane loads

Automated welding of heavy structural steel beam flange

Submerged Arc Welded Columns

100% UT tested full penetration butt welds on structural columns

Fabricated structural steel bay in plant

Fabricated Factory Plant Bays

Heavy industrial fabrication bay with overhead crane material handling

11 / 12 Architectural Metalwork
Architectural CNC Elegance
Intricate laser-cut decorative metal screen and architectural gate
Architectural CNC Elegance
TOL: Intricate CAD Precision

Designer Gates, Grills & Architectural Laser Screens

Parametric CNC laser cut decorative facade panels, perimeter security gates, architectural jalis, staircase railings, and custom metal privacy screens.

Extensive library of contemporary parametric, geometric, and traditional jali motifs
Robust box-section tubular subframes with concealed heavy-duty pivot posts
Super-durable exterior polyester powder coating with 15-year color retention
Envelope: Custom Spans up to 12 Meters
Tolerance: Intricate CAD Precision
Quote via WhatsApp Specs
Work Samples:
Click to inspect
Intricate laser cut metal screen jali panel

Intricate Jali Privacy Screens

Custom parametric cutouts providing ventilation and privacy

Fabricated motorized entrance gate with structural steel tubing

Fabricated Architectural Gates

Sliding entrance gate combining structural tubing and laser-cut steel

12 / 12 Storage & Process Vessels
Heavy Vessel Fabrication
Heavy industrial vessel and tank fabrication facility in Bhopal
Heavy Vessel Fabrication
TOL: Hydro Tested & Seam Verified

Industrial Tanks, Pressure Vessels & Process Piping

Heavy plate roll-bending, seam-welding, and fabrication of industrial storage tanks, process vessels, diesel fuel tanks, and custom process piping manifolds.

Precision 4-roll CNC plate rolling guaranteeing true circularity and uniform radius
Automated TIG/MIG seam welding manipulators with back-purging for clean root passes
Non-destructive testing (NDT), ultrasonic flaw detection, and dye-penetrant inspection
Envelope: Up to 100,000 Liters Capacity
Tolerance: Hydro Tested & Seam Verified
Quote via WhatsApp Specs
Work Samples:
Click to inspect
Heavy cylindrical steel tank shell with welded dished ends

Cylindrical Storage Tanks

Precision rolled cylinder shells with automated circular seam welding

Heavy welded steel vessel shell under fabrication

Heavy Welded Process Vessels

Heavy steel pressure-tested vessel shell with sanitary nozzles

Rolled cylindrical shells and formed components

Flanged Process Piping & Ducts

High-pressure flanged piping spools and rolled cylinder components

APPLICATION SECTORS

Industries We Serve

Power Systems

Transformers & Busbars

Railways

Bogie & Coach Mounts

Panel Builders

LT/HT IP65 Enclosures

Automotive

Chassis & Brackets

Infrastructure

PEB Sheds & Gantries

Custom OEM

Tanks & Silencers

INITIATE YOUR PROJECT

Have a Fabrication Requirement?

Share your drawings (DXF, DWG, STEP, PDF) with our engineering desk at Govindpura, Bhopal. We review tolerances, material yields, and provide quotations within 24 hours.

+91 85179 88927 • toptechinnovationindustries@gmail.com
WhatsApp
Live Engineering Chat
